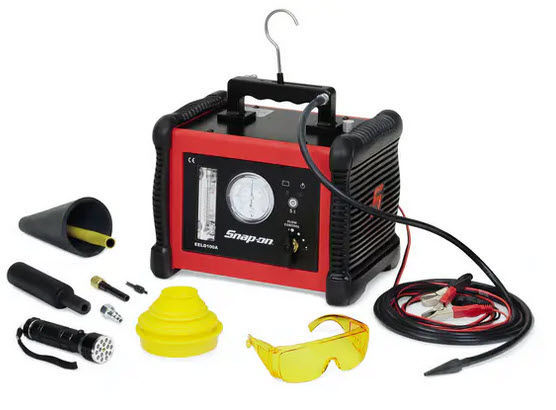

EELD100A - Diagnostic Smoke® Machine (EVAP)

SKU: EELD100A

R51 738,50 incl vat

Qty:

Features
Finds leaks
Contains Diagnostic Smoke® technology for EVAP testing and general-purpose applications
UltraTraceUV® non-contaminating dye solution pinpoints leaks that smoke cannot locate alone
Includes a combination LED and UV light, plus special glasses
Eight of the top 10 emission DTC codes can be diagnosed with this unit
Smoke solution does not produce an unpleasant odor in the shop
Variable flow control manually reduces the flow to help pinpoint the exact location of a leak
Conveniently functions with OEM-specified optional nitrogen, a portable CO2 bottle (ships empty) or shop air
Convenient retractable hanger for undercar and underhood use
Lightweight and compact stores in a large bottom roll cab drawer or hangs with an optional cover to protect from shop dirt
OPTIONAL ACCESSORIES:
EELD500C02 C02 Bottle and Regulator, EELD500C02 ships empty and needs to be filled at a hardware store
EELD500CVR Protective Cover
EELD500-1 Additional 8 oz Bottle of Solution
EELDGASCAP Gas Cap Adaptor 3 pc
EELDGASBMW One Gas Cap Adaptor BMW®

Supply Volume, L/Min	10
Power Consumption	12 V DC, 25 A
Power Supply	12 V DC
Country Of Origin	CHN
Maximum Pressure Input, Psi	170
Overall Dimensions, inches (mm)	12 W x 13 D x 12 H (305 W x 229 D x 305 H)
Line Length/Smoke Supply, ft (m)	8 (2.44)
Line Length/Remote Starter, ft (m)	10 (3)
Weight, lb (kg)	11.5 (5.25)
Line Length/Power Supply, ft (m)	8 (2.44)
