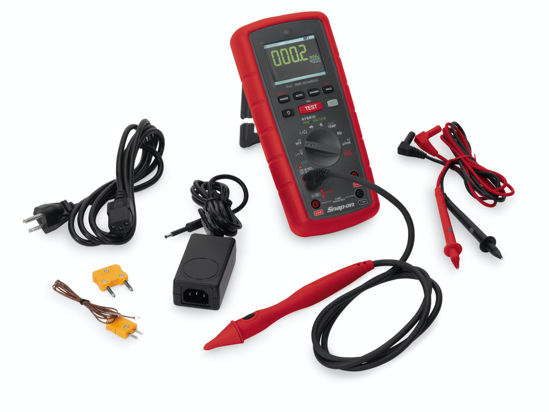

EEDM650C - Multimeter / Insulation Tester

SKU: EEDM650C

R34 488,50 incl vat

Qty:

Features
Insulation testing of electric motor coil winding on hybrids: Checks the coating on the wires to detect leakage current that can result in poor performance or failure
CAT III 1000 V, CAT IV 600 V Safety Rating
0.25 Peak Capture: Catches faster signals that other meters may miss regarding intermittent issues for improved diagnostics
4,000 Count Color Graphic Display: World’s 1st DMM in color, easy on the eyes and can be seen in sunlight
Rechargeable Battery: Insulation-tests can draw power quickly, the rechargeable battery keeps you working—reduces battery replacement costs
5 Voltage Test Ranges: 50, 100, 250, 500, 1,000 V DC
CAT III 1,000 V / CAT IV 600 V Safety Standard: Special circuit board spacing increases safety—use for hybrids, power plants, wind turbines and more
Separate Fuse Compartment: Easy to replace fuse via one removal screw
High-quality Test Leads: Same safety standard ratings as the meter

Capacitance	Yes
RPM	EEDMRPMG (opt.)
Low Pass Filter (LPF)	Yes
Case or Zipper Pouch	EEDM650CPB (opt.)
Adjustable Trigger Level	No
Temperature	EEDMTEMP-1
AC Volts	1,000
Basic DC Accuracy, %	±0.1 (+ 2 digits)
Micro Amps	400
Country Of Origin	KOR
Dimensions, inches	9 x 4-1/4 x 2
Noise Reduction Circuit	Yes
mS Pulse Width	No
CAT Rating	CATIII 1,000 V CAT IV 600 V
Backlight	Variable
Auto Shut-off	Yes
Test Leads	EEDM504B3
Certificate of Calibration Model	EEDM650CCRT
AC Amps, mA	400
DC Amps	400 mA
UL® Listed	cULus 61010-1
Glitch Capture	Yes
Insulation Test	Yes
Analog Bar Graph	No
Resistance, ohms	40M
Data Hold	Yes
Auto Range	Yes
Duty/Dwell	No
True RMS (Root Mean Square)	Yes
Display Count	4,000
Fuses	EEDMFUSE-7
Blown Fuse Identifier	Yes
Comp. Output (USB)	No
Min/Max	Yes
DC Volts	1,000
Easy Open Battery and Fuse Door	EEDM650C-6
Color Screen	Yes
Frequency	Yes
