EELD500 Smart Smoke Evap Elite

SKU: EELD500
R83 938,50 incl vat
  • Features
  • Smart Smoke ® technology diagnoses eight of the top 10 DTC codes
  • Digital readout displays leak sizes down to 0.001 LPM and pressure/vacuum in H2O
  • Self-calibrates for .010, .020, .040 and automatically performs an EVAP pass/fail test
  • One-touch EVAP testing at 0.5 PSi with automatic pass or fail
  • Low-flow mode makes it easier to find leaks
  • Vacuum port adaptor diagnoses Chrysler® ESIM and NVLD systems
  • Find leaks; the evaporative emissions diagnostic smoke machine delivers EVAP testing and general-purpose applications
  • Conveniently functions with OEM-specified nitrogen, a portable CO2 bottle (ships empty) or shop air
  • UltraTraceUV® dye solution pinpoints leaks
  • OEM-approved smoke technology
  • Smoke solution is safe and does not produce unpleasant odor in the shop
  • Three-button control Display Select, Orifice Select and Start
  • Includes a combination LED/UV light and remote control
  • Convenient hanger for undercar and underhood use
  • Lightweight and compact—stores in a large bottom roll cab drawer or hangs with an optional cover to protect from shop dirt and dust

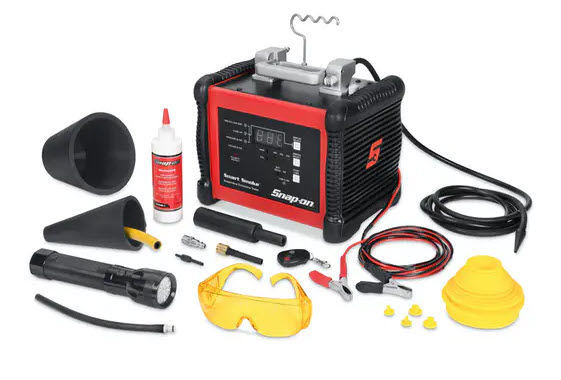

  • Includes: Large adaptor cone, vacuum adaptor, a combination LED UV light and yellow glasses, removable battery clamp lead set, remote control, user manual, assorted cap-plug set, exhaust cone (1 x 3-1/2" dia./6" long), smoke diffuser (for finding wind/water leaks), EVAP service port adaptor that fits standard- and dual-size Schrader removal/installation tool
  • Optional accessories include a CO2 bottle and regulator, protective cover, an 8 oz bottle of solution, second smoke hose, vacuum pump, gas cap adaptor (3 pk) and a BMW® gas cap adaptor
  • Specifications
  • Supply Volume, L/Min 10
    Power Consumption 12/18 V DC, 25 A
    Power Supply 12 V DC
    Country Of Origin CHN
    Maximum Pressure Input, Psi 170
    Remote Starter Range, ft (m) 50 (15.24)
    Maximum Output Test Pressure, inches/H20 (Psi) 13 (0.5)
    Overall Dimensions, inches (mm) 12 W x 9 D x 12 H (310 W x 230 D x 310 H)
    Line Length/Smoke Supply, ft (m) 8 (2.44)
    Weight, lb (kg) 11.5 (5.25)
    Line Length/Power Supply, ft (m) 8 (2.44)
