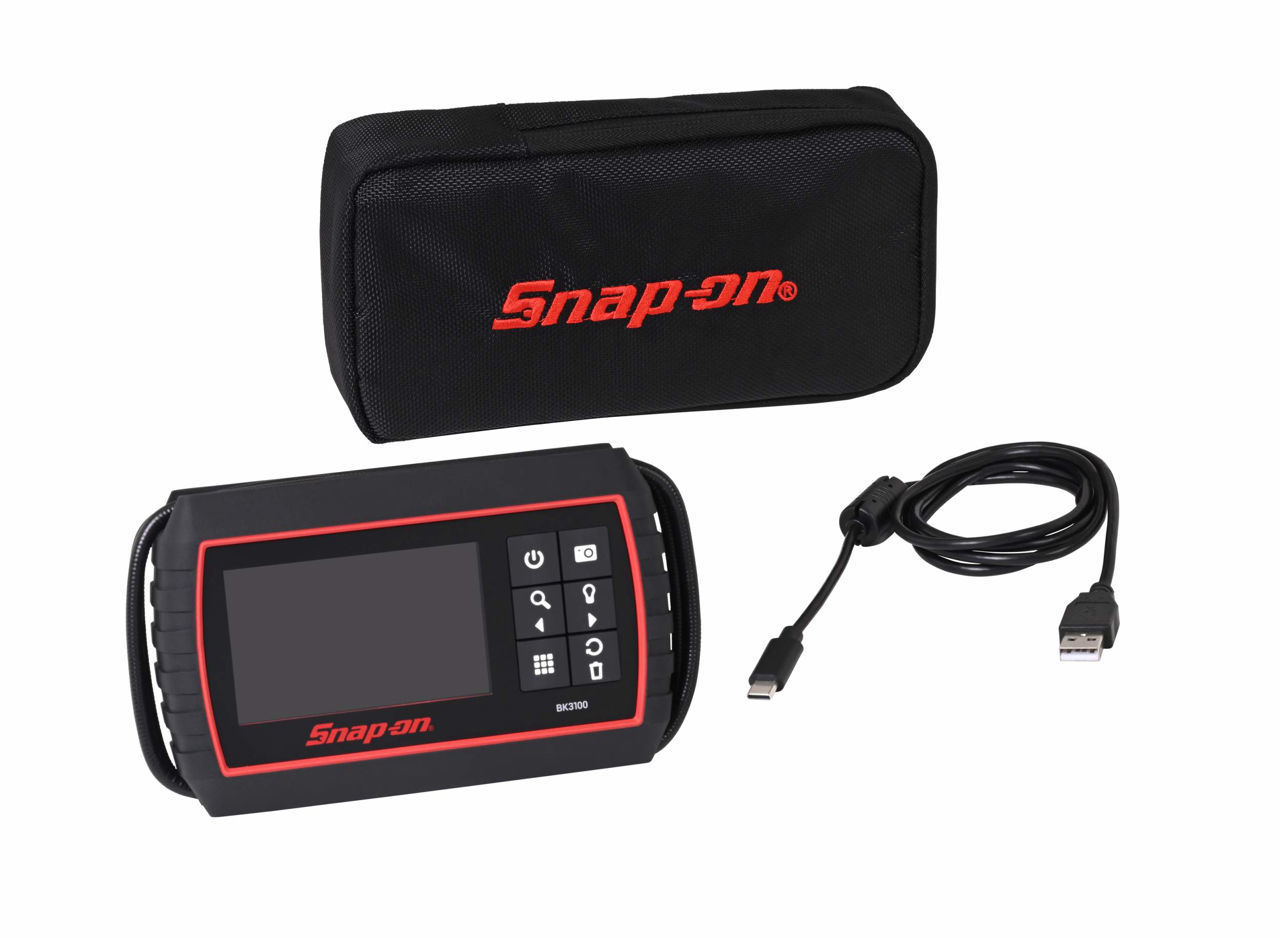

BK3100 - Video Inspection Scope with 5.5mm Imager

SKU: BK3100
R9 878,50 incl vat
10
  • Features
  • 3-1/2" (88mm) LCD screen
  • 5.5 mm diameter fixed imager
  • 16 GB internal memory
  • Rechargeable lithium-ion battery
  • Screen resolution 800 x 480 with LED backlight
  • Mirror and magnet included
  • Run time is approximately four hours
  • Video capabilities
  • Two year warranty
  • Sea-Freight Item (if out of stock)
  • Specifications :
  • Video Resolution 800 x 480
    Optimal Focal Range 1–3.3" (2.54–8 cm)
    Operating Temperature 32–140 °F (0–60 °C), Batteries will not charge above 95 °F (35 °C)
    Charge Time 3.5 hours (approx)
    Imager View Mode Forward
    Maximum Current 1.5 A
    Rotation 0 and 180°
    Length, inches (mm) 3.74 (95)
    Width, inches (mm) 5.96 (151)
    Use while charging? Yes
    Image Resolution 1,280 x 720
    Power Supply Internal Li-Ion Battery, 3.7 V, 2600 mAh, 9.6 watt-hours
    Media File Limit 1,000 files
    Auto-off Timer 20 minutes
    Country of Origin CHN
    Storage Temperature -4–140 °F (-20–60 °C), 77 °F (25 °C) is ideal for maximum battery life
    Screen Resolution 480 x 800 with LED Backlight
    Accessories Mirror and Magnet
    Relative Humidity 5–90% non-condensing
    Height, inches (mm) 1.5 (38)
    Imager Length 38.5" (~1m)
    Media Management On unit and connected to Computer
    Data Transfer Cable USB-A to USB-C
    Screen Size 3.5"
    Imager Diameter 5.5 mm
    On Board Memory 16 GB Non-Removable SD Card
    Run Time 4 hours (approx)
    Zoom Levels 4
    LED Brightness Levels 6
    Weight, lb (grams) 0.89 (800)
    Charger Input 5 V DC, 2 A
    Field of View Approx 78° diagonal
    Cable Output Voltage 5 V DC
