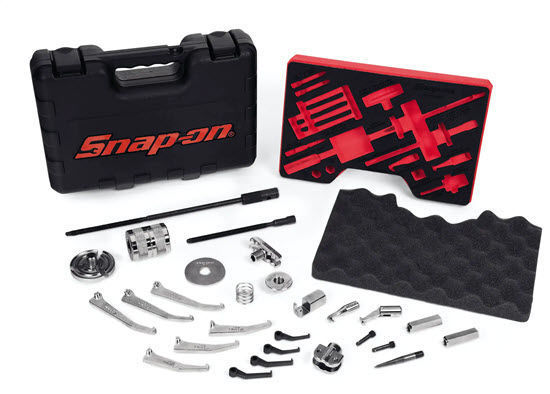

CJ2400 - Light-Duty Manual Interchangeable Master Puller Set

SKU: CJ2400

R20 228,50 incl vat

Qty:

Set Breakdown :
CJ240-11 - Pressure Screw
CJ240-3 - 2-Jaw Yoke
CJ243-2 - 3-Jaw Yoke
CJ240-3 - 3 x Jaws 2-1/2" (63.5mm)
CJ240-6 - Spring
CJ240-7 - Adjustable Lock Nut
CJ243-5 - Lock Plate
CJ125-6 - Slide Hammer
A78-6D - 2 x Jaw Pins
A78-4 - 2 x Jaws 1-5/8" (40mm)
A78-3 - 2 x Jaws 2" (50mm)
CJ93-1 - Slide Screw
CJ93-3-1A - Jaw Holder
CJ93-4 - Double Hook
CJ93-5 - Hook
CJ93-6B - Body Dent Puller Adaptor
CJ93-7 - Stud Puller Adaptor 5/16"-24
CJ93-8 - Stud Puller Adaptor 3/8"-24
CJ107-1A - Tapered Screw

Features
Interchangeability of components creates 36 puller configurations and works with other CJ pullers in the product line
Easy to use: spring loaded locking mechanism allows the puller jaws to easily lock onto with work surface for both “Inside” and “Outside” pulling applications, reducing the puller slipping off the application—two-handed operation without the use of tools
Interchangeability: reversible jaw design, two position yokes that accommodate multiple jaw lengths, and spring loaded mechanism allows quick changeover without the disassembly of the puller and without the need of nuts and bolts resulting in faster set-ups and fewer man-hours
Strength and Durability: one-piece jaw construction that does not use pins or bolts, provides a stronger, safer jaw
Power pressure screws have rolled threads and are heat-treated for strength and durability
Forged jaws and yokes are heat-treated for max strength and durability

Case Dimensions, inches (mm)	9 x 8-1/2 x 3-1/2 (229 x 216 x 89)
Puller Configurations	36
Capacity, tons	Up to 2.5
Jaw Length Range, inches	1-5/8, 2.0, 2.5, 3.5
Maximum Spread, inches (mm) outside	0–4 (0–101.6)
Country of Origin	USA
Jaw Configuration	2 and 3 Jaw; Adaptor
Maximum Spread, inches (mm) inside	7/8–3-3/4 (22–95)
Weight, lb (kg)	7.8 (3.5)
Jaw Sets	4
