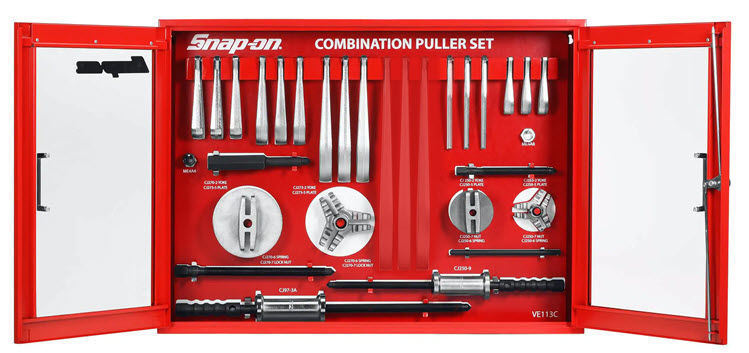

CJ2500SBE-WO - Heavy-Duty Manual Interchangeable Master Puller Set with Tool Control Board and Wall Cabinet (excl 15" Jaws)

SKU: CJ2500SBE-WO

R91 482,50 incl vat

Qty:

Set Breakdown :
CJ105-12 - Cross Bar
CJ250-10 - 3 x Jaws 6" / 150mm
CJ250-1413 - Slide Screw 5/8-18 UNF x 18-9/16
CJ250-2 - 2-Jaw Yoke Thread 5/8-18
CJ250-3 - 3 x Jaws 3" / 75mm
CJ250-413 - Pressure Screw 5/8-18 x 6-7/8 and Point
CJ250-5 - Lock Plate
CJ250-6 - Spring
CJ250-7 - Adjusting Nut
CJ250-9 - Slide Hammer 2-1/2 lb
CJ253-2 - 3-Jaw Yoke
CJ270-10 - 3 x Jaws 8-3/4" (220mm)
CJ270-1117 - Pressure Screw 3/4-16 x 12-1/8 and Point
CJ270-1317 - Screw Adapter 3/4-16 x 7-4/5 and Point
CJ270-1417 - Slide Screw 3/4-16UNF with Center Point
CJ270-2 - 2-Jaw Yoke
CJ270-3 - 3 x Jaws 5-1/2" (140mm)
CJ270-3S - 3 x Special Grip Jaw Pullers
CJ270-6 - Spring
CJ270-7 - Adjustable Lock Nut
CJ273-2 - 3-Jaw Yoke
CJ273-5 - Lock Plate
CJ97-3A - Slide Hammer 3-3/4 lb
ME4A8 - 3/4" Lock Nut
ME4A4 - 5/8"-18 Nut
VE113C - Tool Control Board
KRA276D - Wall Cabinet
Board has part number markings to help reorder used and damaged parts
Contrasting colors provide visual control which reduces time searching for missing tools

Features
Easy to use: Spring loaded locking mechanism allows the puller jaws to easily lock onto work surface for both “Inside” and “Outside” pulling applications, reducing the puller slipping off the application—two-handed operation without the use of tools
Interchangeability: Reversible jaw design, 2-position yokes that accommodate multiple jaw lengths, spring loaded mechanism allows quick changeover without the disassembly of the puller and without the need of nuts and bolts resulting in faster set-ups and fewer man-hours
Strength and Durability: One-piece jaw construction that does not use pins or bolts, provides a stronger, safer jaw; power pressure screws are rolled threaded and heat-treated for strength and durability; forged jaws and yokes are heat-treated for max strength and durability

Cabinet Dimensions, inches (mm)	33-7/8 x 24-3/4 x 6 (860 x 620 x 152)
Puller Configurations	48
Capacity, tons	6–12.5
Jaw Length Range, inches	3, 5.5, 5.5 Special Grip, 6, 8.8, 15
Maximum Spread, inches (mm) outside	1-1/2–13-7/8 (38–352)
Country Of Origin	USA
Jaw Configuration	2 and 3 Jaw
Maximum Spread, inches (mm) inside	1-1/2–11-1/2 (38–292)
Jaw Sets	6
