CJ2500SE-WO - Heavy-Duty Manual Interchangeable Master Puller Set with Tool Control Board (excl 15" Jaws)

SKU: CJ2500SE-WO
R50 128,50 incl vat
  • Set Breakdown :
  • CJ105-12 - Cross Bar
  • CJ250-10 - 3 x Jaws 6" / 150mm
    CJ250-1413 - Slide Screw 5/8-18 UNF x 18-9/16
    CJ250-2 - 2-Jaw Yoke Thread 5/8-18
    CJ250-3 - 3 x Jaws 3" / 75mm
    CJ250-413 - Pressure Screw 5/8-18 x 6-7/8 and Point
    CJ250-5 - Lock Plate
    CJ250-6 - Spring
    CJ250-7 - Adjusting Nut
    CJ250-9 - Slide Hammer 2-1/2 lb
  • CJ253-2 - 3-Jaw Yoke
  • CJ270-10 - 3 x Jaws 8-3/4" (220mm)
    CJ270-1117 - Pressure Screw 3/4-16 x 12-1/8 and Point
    CJ270-1317 - Screw Adapter 3/4-16 x 7-4/5 and Point
    CJ270-1417 - Slide Screw 3/4-16UNF with Center Point
    CJ270-2 - 2-Jaw Yoke
    CJ270-3 - 3 x Jaws 5-1/2" (140mm)
    CJ270-3S - 3 x Special Grip Jaw Pullers
    CJ270-6 - Spring
    CJ270-7 - Adjustable Lock Nut
  • CJ273-2 - 3-Jaw Yoke
    CJ273-5 - Lock Plate
  • CJ97-3A - Slide Hammer 3-3/4 lb
  • ME4A8 - 3/4" Lock Nut
    ME4A4 - 5/8"-18 Nut

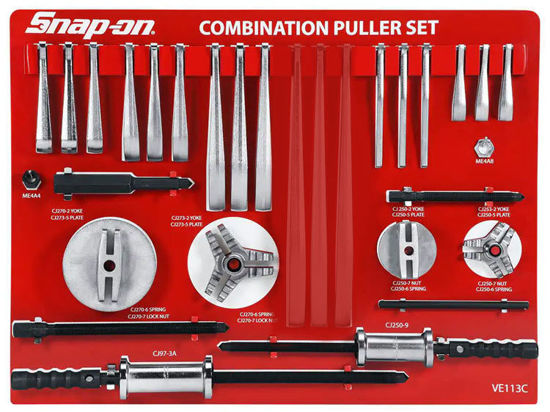

  • VE113C - Tool Control Board
  • Board has part number markings to help reorder used and damaged parts
  • Contrasting colors provide visual control which reduces time searching for missing tools
  • Features
  • Easy to use: Spring loaded locking mechanism allows the puller jaws to easily lock onto work surface for both “Inside” and “Outside” pulling applications, reducing the puller slipping off the application—two-handed operation without the use of tools
  • Interchangeability: Reversible jaw design, 2-position yokes that accommodate multiple jaw lengths, spring loaded mechanism allows quick changeover without the disassembly of the puller and without the need of nuts and bolts resulting in faster set-ups and fewer man-hours
  • Strength and Durability: One-piece jaw construction that does not use pins or bolts, provides a stronger, safer jaw; power pressure screws are rolled threaded and heat-treated for strength and durability; forged jaws and yokes are heat-treated for max strength and durability
  • Specifications :
  • Puller Configurations48
    Capacity, tons6–12.5
    Jaw Length Range, inches3, 5.5, 5.5 Special Grip, 6, 8.8, 15
    Maximum Spread, inches (mm) outside1-1/2–13-7/8 (38–352)
    Country Of OriginUSA
    Jaw Configuration2 and 3 Jaw
    Maximum Spread, inches (mm) inside1-1/2–11-1/2 (38–292)
    Jaw Sets6
