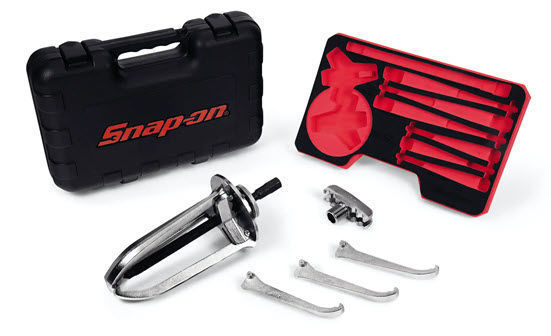

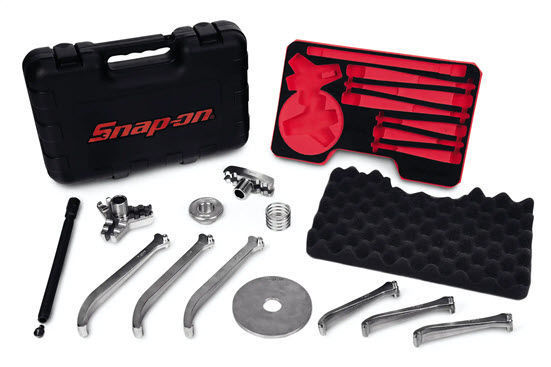

CJ270 - Heavy-Duty General Purpose Puller Set; 13Pc

SKU: CJ270
R18 848,50 incl vat
  • Features
  • Easy to use: Spring loaded locking mechanism allows the puller jaws to easily lock onto work surface for both “inside” and “outside” pulling applications, preventing the puller from slipping off the application—two-handed operation without the use of tools
  • Interchangeability: Reversible jaw design, two-position yokes that accommodate multiple jaw lengths, spring loaded mechanism allows quick changeover without the disassembly of the puller and without the need of nuts and bolts resulting in faster set-ups and fewer man-hours
  • Strength and durability: One-piece jaw construction that does not use pins or bolts, provides a stronger, safer jaw; power pressure screws are roll threaded and heat-treated for strength and durability; forged jaws and yokes are heat-treated for maximum strength and durability
  • Specifications :
  • Case Dimensions, inches (mm) 17.5 x 12 x 4 (445 x 305 x 102)
    Screw Thread Spec 3/4-16
    Screw Overall Length, inches 12-1/8 (308)
    Capacity, tons Up to 12.5
    Maximum Spread, inches (mm) outside 10 (254)
    Country of Origin USA
    Jaw Configuration 2 and 3 Jaw
    Maximum Spread, inches (mm) inside 2-1/2–7-1/2; 3–8 (63.5–190.5; 76–203)
    Replaceable Point Yes
    Jaw Width, inches (mm) 15/16 (24)
    Screw Thread Length, inches 9-1/2
    Weight, lb (kg) 14.5 (6.5)
    Jaw Thickness, inches 1/4 (6)
    Max Reach, inches (mm) 5-1/2 and 8 (140 and 203)
    Screw Hex Size, inches 7/8
    Jaw Length, inches 5-1/2 and 8-3/4 (140 and 222)
