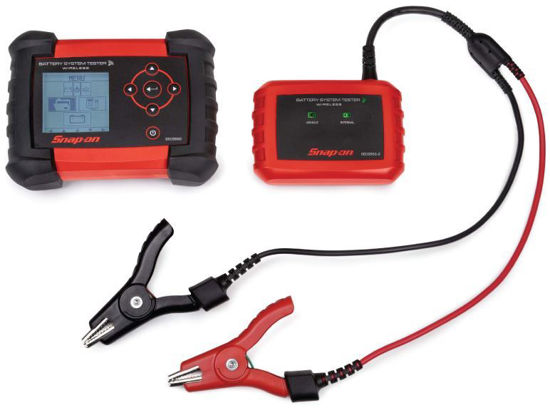

EECS550A - 6, 8, 12 and 24V Wireless Battery Tester

SKU: EECS550A
R25 612,48 incl vat
Cash Price: R24 331,85 incl vat
Save 5% by paying with PayGate or Manual EFT You save: R1 280,62 incl vat
  • Features
  • Test autos, trucks, motorcycles, ATV’s and more
  • Connect the unit to the vehicle battery, magnets hold it in place
  • Walk freely around the vehicle with main module, no need for a second tech to perform on screen commands like start or rev engine
  • Select from eight languages for on-screen commands
  • For use with optional printer: EECS-PRINTER
  • Comfortable soft grip horizontal handhold position
  • Menu and test results viewable on back-lit screen
  • Reverse polarity protection
  • Displays % of cold cranking amps
  • Test 6, 8, 12 and 24 V systems
  • (24 V packs consisting of multiple group31 12 V Batteries)
  • Test batteries rated 100–2,000 CCA
  • Test standard, AGM®, GEL and EFB batteries
  • Ratings CCA, CA, SAE, EN, IEC, DIN, JIS
  • Detects discharged battery down to 1 V
  • Power from vehicle or internal 9 V battery
  • Two year warranty
  • Temperature select above or below 32 °F
  • Tests alternator diode ripple
  • Bad cell detection
  • Patented conductance technology
  • Specifications

  • Cable Length, feet (m) 2 (.6)
    Clamps Medium
    CCA Input •
    Displays Battery Voltage (SOC) •
    Volts 6/8-12/24 (24 V Truck Packs of 12 V only, no 24 V Aviation Batteries)
    Retention Magnet On Battery Unit
    Battery Type Standard, AGM, GEL, EFB
    Reverse Polarity Protection •
    Country Of Origin CHN
    Voice Prompts —
    Wireless Controller Bluetooth®
    Integrated Printer —
    Battery Pack Yes, Series
    Printer Capable IR–PC (optional)
    Displays % of CCA •
    Model Wireless
    Bad Cell Detection •
    Post/Stud Adaptors •
    System Test Yes – 12/24 V/Starting/Charging/Ripple
    Tests Discharged Batteries Down to 1 V
    Surface Charge Warning •
    CCA Range 100–2,000
    Communication IR, Bluetooth® Between Modules
    Displays Battery Condition •
    Custom Header with Date and Time •
    Temperature Compensation ± 32 °F
    Poor Connection Detection •
    Displays Battery State of Charge •
    Rating Systems CCA, CA, SAE, EN, IEC, DIN, JIS
    Cable Integrity Technology •
    Display LCD Backlit (3.1" diag.)
