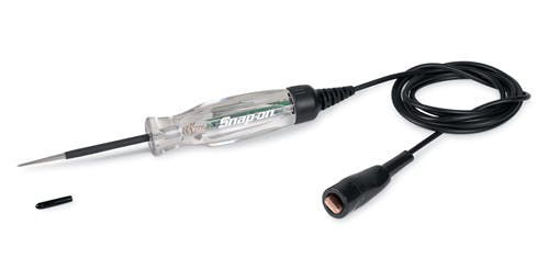

EECT400 - 12V DC Digital Display Circuit Tester

Availability: 3 in stock
SKU: EECT400
R 2 693,20 incl vat

R 2 037,04 incl vat
4.0
  • Features
  • Detects DC voltage, power, ground and circuit integrity
  • LCD display eliminates guesswork and provides voltage value of the circuit
  • LEDs indicate green for ground or red for power
  • One hand is free to jiggle wires, replace a fuse or operate a switch
  • Provides one-handed operation of a circuit tester and the digital display of a multimeter
  • Surge-protected circuitry displays 4-19.99 V DC (±0.3 V accuracy)
  • Patented Instinct® clear handle for pure visibility, comfort and style
  • Solid-copper clip provides superior quality for maximum electrical signal transfer
  • Terminal screw connection ensures a positive electrical signal and easy field repair
  • Superior flex wire glides past components and remains flexible in cold conditions
  • Convenient field-replaceable digital display board and spring assembly
  • Molded contact and finger-turn strain relief are tough
  • O-ring-sealed moisture-free connection for longer life
  • Specifications
  • Voltage6 and 12 V DC
    Operating Temperature0–120 °F (-18–49 °C)
    Replacement Cord AssemblyEECTCORD400 (black, straight), EECTCORD400O (orange, coiled), EECTCORD400G (green, coiled), EECTCORD400R (red, coiled)
    Length, inches (cm)8-1/4 (21)
    Replacement LED and Spring AssemblyEECT400W-LCD
    Computer SafeYes, <10 mA (Do not use on airbags)
    Replacement ClipEECTCLIP
    Stainless Steel Shank Length, inches3-1/2
    Handle Size/ColorMedium Instinct®/Clear
    Extension Cord Part Number
    Terminal EndHeavy-Duty, Copper Clip
    PolarityBi-Directional
    Cord TypeFlexible Rubber
    Country Of OriginKOR
    Warranty1 Year (field repairable)
    Surge ProtectedOverload Displays 1.0 V, Then Resets
    BootEECTBOOT
    Outside Wire Diameter4.0 mm (0.16")
    Resolution0.1 V DC
    Replacement Foam Insert Part Number
    Accuracy±0.3 V
    Cord ColorBlack
    Replacement Carrying Case Part Number
    Weight, lb (kg)0.4 (0.18)
    Range4–19.9 V DC
    Cord Length, ft (m) – gauge6 (2) – 18
    DisplayBacklit 2,000 Count LCD
