EEDM585 - Dual Display Clamp-on Meter with App

SKU: EEDM585
R14 938,50 incl vat
10
  • Features
  • Measures DC V, AC V, OHMS, DC Amps, AC Amps, Hz, Wattage and temperature
  • True RMS meter that provides accurate measurements of non-linear current
  • Designed to measure starting current to 1,100 A, as well as volts, resistance and frequency
  • Use to diagnose wheel speed sensors, injector control signals, cam and crank outputs, test cables, connections and fuses
  • LCD dual display for max/min/average with enhance viewing of fast signal changes
  • Ultra-white LCD display with backlight makes it readable even in direct sunlight
  • Records maximum and minimum values of RMS current, frequency or other measurements
  • Non-contact voltage button enables non-intrusive AC voltage testing for “hot” wires
  • FREE Bluetooth® connected app for display while working at distance, graphing, record readings, review and email shared results (mobile device sold separately)
  • Overmolded body protects meter from drops and rough usage
  • Internal amp protection eliminates replacing fuses
  • Improved clamp core for amps improves readings—test wire does not need to be centered

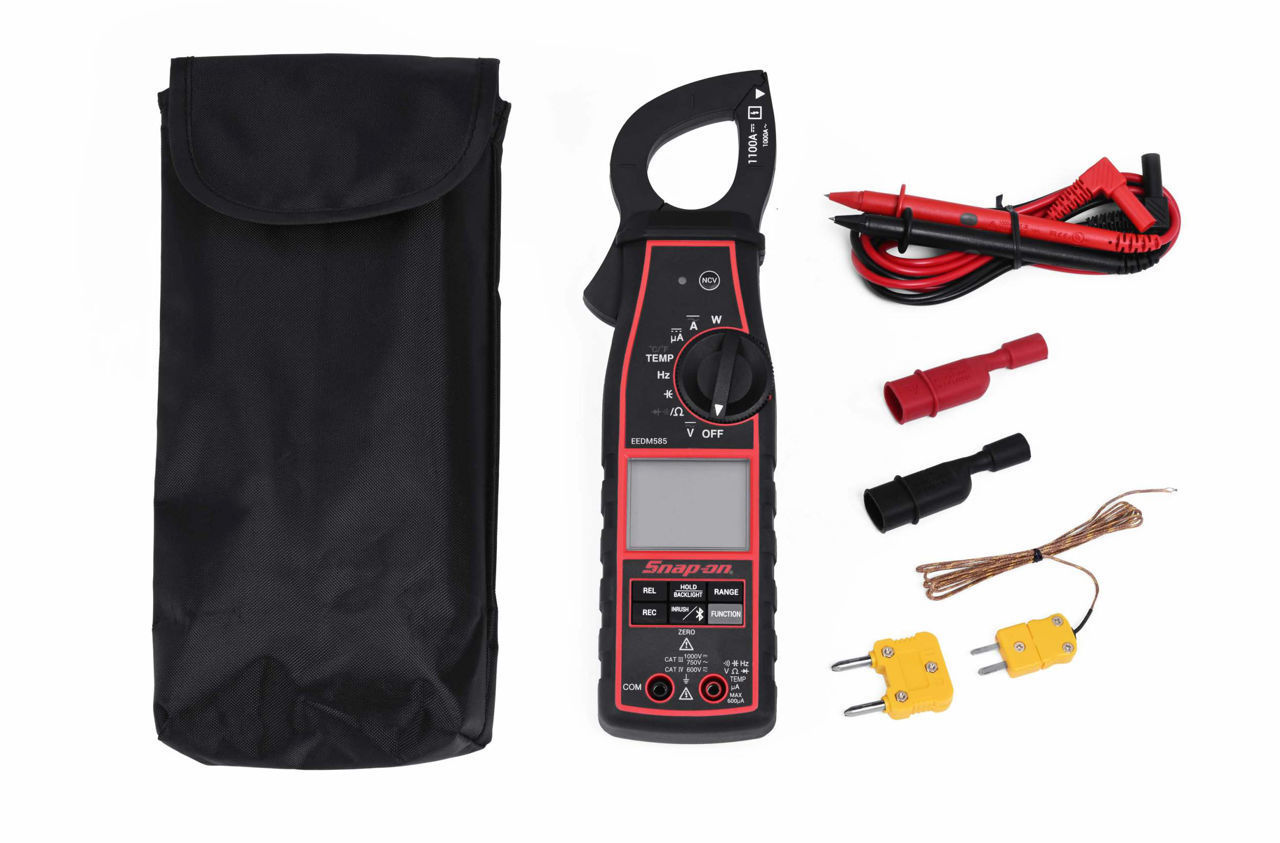

  • Includes test leads, temperature probe, battery, soft carrying case and instruction manual
  • TRMS—CAT III 750 V AC/1,000 V DC
  • CAT IV 600 V AC/DC Hybrid rated
  • Meets UL®, IEC® and cULus61010 safety standards
  • Seven-year warranty
  • Specifications
  • Capacitance 60 mF
    Duty Cycle Yes
    RPM EEDMRPMG (opt.)
    Low Pass Filter (LPF) No
    DC Amps (Jaw Only) 1100
    Case or Zipper Pouch EEDM5F-POUCH
    Replacement Fuses N/A
    Adjustable Trigger Level No
    Manual Ranging Yes
    Temperature EEDMTEMP-1
    AC Volts 750
    Bluetooth Yes
    USB Output No
    Country of Origin KOR
    Dimensions, inches 10 x 2.5 x 1.5
    Noise Reduction Circuit No
    mS Pulse Width No
    CAT Rating CAT III 750 Vac/1,000 V DC; CAT IV 600 V AC/DC; Hybrid Rated
    Backlight Yes
    Auto Shut-off Yes
    Test Leads EEDM504B3
    UL® Listed UL61010-1
    IP Rating IPX0 per IEC 60529
    Glitch Capture No
    Insulation Test No
    Battery Life 50 Hours (No backlight or BT)
    Relative Mode Yes
    Graphing/Record Via App
    DC Micro Amps (Test Leads Only) 600
    Update Rate 4/second
    Data Hold Yes
    Share Results Via App
    Auto Range Yes
    Non-Contact AC Volt Detection Yes
    Inrush Current on ACA (Jaw only) Yes
    Save Results Via App
    True RMS (Root Mean Square) Yes
    Display Count 6000
    Basic DCV Accuracy 0.5% (+2 Digits)
    Resistance Yes
    Diode Test Yes
    Continuity Buzzer Yes
    Easy Open Battery Door Yes
    Min/Max Yes
    DC Volts 1000
    AC Amps TRMS (Jaw Only) 1,000
    Color Screen No
    Temp Probe Range (Measured) -57.9–1,830 °F (Opt. Probe)
    Blown Fuse ID No
    Frequency Yes
    Power Factor Yes
