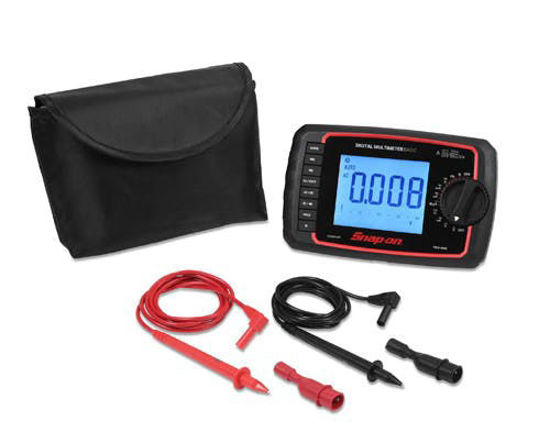

EEDM504F - Basic Multimeter TRMS-Daylight

SKU: EEDM504F

R9 911,65 incl vat

Qty:

Features
Measures ohms, AC/DC volts, true-RMS AC, AC/DC amps, Hz frequency and more to cover many automotive electrical needs
Large, white backlit display for easy reading, plus quick identification of symbols in low light conditions and with the backlight off—the best Snap-on® meter in bright daylight
Convenient test lead storage wrap with retention strap
Built-in tilt stand and optional strap hanger (EEDMMAGSTRAP) for easy viewing
Hz/Duty (Duty Cycle)—measure in percent the ON time of sensors or other devices
REC (record mode)—store minimum and maximum readings over a measurement period
LCD display—4,000 count with 41-segment bar graph
Seven-year limited warranty
TRUE-RMS—True-RMS measurement on ACV and ACA for accurate readings on all types of of AC waveforms
High-resolution DC mV range-additional 40 mV range with 0.01 mV resolution for improved accuracy when performing low-voltage measurements
ACV (AC Volts)—measure the voltage of ABS wheel sensors
DCV (DC Volts)—measure the voltage of circuits and sensors
Separate fuse/battery compartment—easily removed for battery/fuse replacement
REL (Relative Mode)—factor out lead resistance for improved low ohm measurements or compare readings to a known standard; can also be used for differential measurements
Hold—lock the reading on the display for hard to read locations for future reference
Ohms/Resistance—measure the resistance of spark plug wires, coils, sensors, and continuity of wiring
AC/DC Current Functions (Amps)—measure the parasitic draw from the battery with ignition off
Hz (Frequency)—measure the frequency of sensors and signals
Separate Fuse/Battery Compartment—easily removed for battery/fuse replacement

Specifications

Capacitance	Yes
RPM	EEDMRPMG (opt.)
Low Pass Filter (LPF)	No
Adjustable Trigger Level	No
Temperature	EEDM506C (opt.)
AC Volts	750
Micro Amps	Yes
Country Of Origin	KOR
Dimensions, inches	7-3/4 x 3-3/4 x 1-1/2
Noise Reduction Circuit	No
mS Pulse Width	No
CAT Rating	CATII 750 V AC, CATII 1,000 V DC, CATIII 600 V AC/DC
Prop 65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Backlight	Yes
Auto Shutoff	After Approx. 15 minutes (can be disabled)
Test Leads	EEDMLEADSET
Certificate of Calibration Model	EEDM504FCRTâ€
DC Amps	10
UL® Listed	cULus 61010-1
Glitch Capture	No
Insulation Test	No
Analog Bar Graph	Yes
Resistance, ohms	40M
Basic DC Accuracy	—
Data Hold	Yes
Auto Range	Yes
Duty/Dwell	Yes
True RMS (Root Mean Square)	Yes
AC Amps	10
Display Count	4,000
Soft Pouch	EEDM5F-POUCH
Fuses	EEDMFUSE-1, EEDMFUSE-2
Blown Fuse Identifier	Yes
Comp. Output (USB)	No
Min/Max	Yes
DC Volts	1,000
Easy Open Battery and Fuse Door	Yes
Color Screen	No
Frequency	Yes
