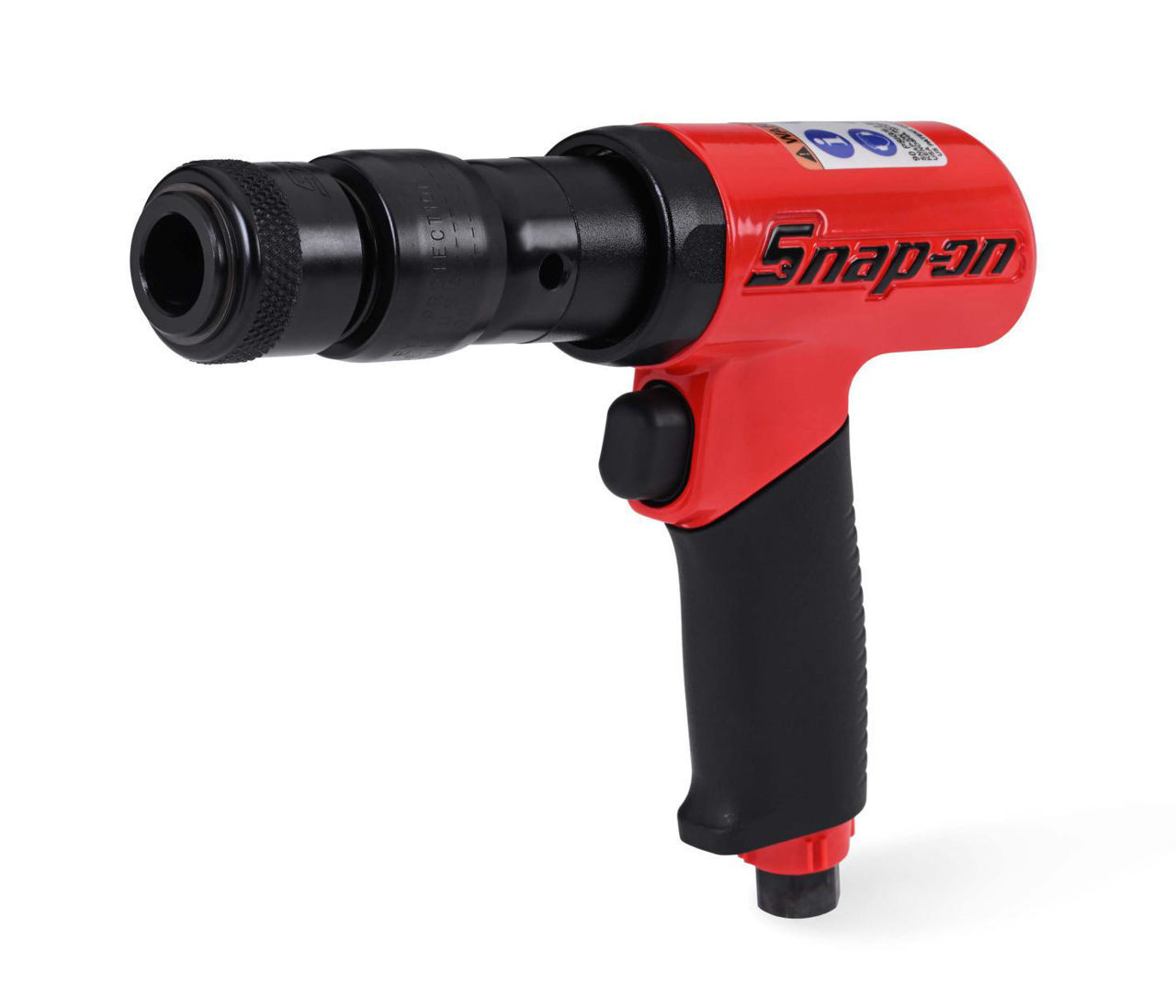

PH3045A - Heavy-Duty Short Barrel Air Hammer (3,500 BPM)

SKU: PH3045A
R10 966,47 incl vat
  • Features
  • 3,500 BPM with hardened steel piston, delivering harder blows for maximum impact
  • Compact and lightweight, perfect for applications in small, hard-to-access areas
  • Dual elastomer cushions absorb shock and vibration, reducing user fatigue
  • Phenolic (Kevlar® reinforced) flutter disc for durability
  • Direct multiport front exhaust keeps air and debris away from user
  • High-grade steel barrel provides greater strength
  • Variable-speed soft-touch trigger with featherability for superior control
  • Four-position built-in air regulator varies power for different applications
  • Air line screen helps prevent foreign particles from clogging trigger mechanism
  • Includes PH200D Universal Quick-Change Chuck Retainer
  • Warranty - 2 years from date of purchase
  • Specifications
  • Shank Opening, inches (mm) 0.401 (10.2)
    Piston Stroke, inches (mm) 2.5 (64)
    Length, inches (mm) 9.37 (238)
    Vinyl Boot PH3050RBOOT
    Air Consumption, Free Speed, CFM (SCFM) [l/min] 1.8 (12) [59]
    Recommended Air Pressure, PSIG (kPa) 90 (620)
    Air Inlet Thread Size, inches (NPT) 1/4 (18)
    Country of Origin USA
    Sound Level dB(A) Pressure 101.4
    Blows Per Minute, BPM 3,500
    Vibration Level, m/s² 4.89
    Recommended Hose Size, inches (mm) 5/16 (8)
    Weight, lb (kg) 5.0 (2.3)
    Bore Diameter, inches (mm) 3/4 (19)
