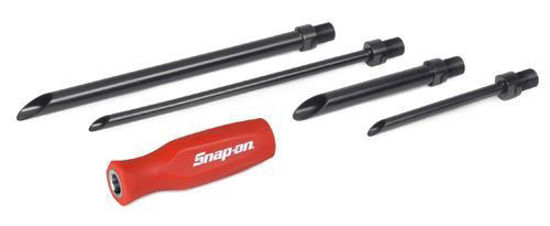

WINS100R - Wire Insertion Tool Set (Red)

Availability: 2 in stock

SKU: WINS100R

Normal Price: R2 282,97 incl vat

Promo / Factory Price:
R1 770,25 incl vat

Qty:

3.5

Features
Prevents damage to electrical sheathing
Helps the technician feed or pull wire around a number of obstacles, or against pieces of metal
Safeguards against damage to plastic sheathing that can result in an intermittent or non-functioning condition
Provides flexibility/adaptability; set allows technician to adapt to each application through the use of different lengths and diameters of tubes
Ideal for use with Snap-on® videoscopes; protects investment by using this tool to direct/protect the expensive fiber optic element during use
Tubes thread into metal threaded insert within the handle, providing strong connection
Tube angular orientation prevents the wires from “dead-heading” against an object, and getting stuck or damaged

Internal Shaft Diameter (Long Shaft WINS830), inches (mm)	1/4 (6)
Shaft Length usable (Long Shaft), inches (mm)	8 (203)
External Shaft Diameter (Long Shaft WINS830), inches (mm)	5/16 (8)
Handle Color	Red
External Shaft Diameter (Short Shaft WINS430), inches (mm)	5/16 (8)
Internal Shaft Diameter (Short Shaft WINS430), inches (mm)	1/4 (6)
Internal Shaft Diameter (Long Shaft WINS850), inches (mm)	7/16 (11)
Country Of Origin	KOR
External Shaft Diameter (Long Shaft WINS850), inches (mm)	1/2 (13)
Overall Length (Long Shaft), inches (mm)	12-1/8 (308.2)
Overall Length (Short Shaft), inches (mm)	8-1/8 (206.6)
Internal Shaft Diameter (Short Shaft WINS450), inches (mm)	7/16 (11)
Shaft Length usable (Short Shaft), inches (mm)	4 (101.6)
External Shaft Diameter (Short Shaft WINS450), inches (mm)	1/2 (13)
Handle Length, inches (mm)	4-1/16 (105)
