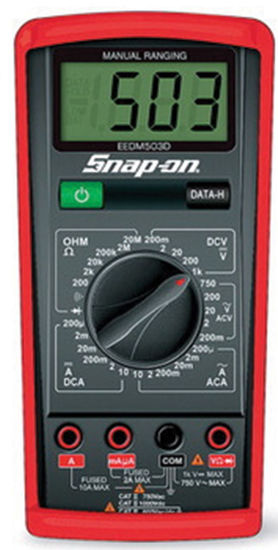

EEDM503D - Traditional Digital Multimeter

SKU: EEDM503D

R5 278,50 incl vat

Qty:

Cash Price: R5 014,58 incl vat

Features
Large, easy-to-read, 2,000-count LCD display
Push-button on/off
Ohm measure function determines coil or spark plug resistance
Continuity buzzer tests continuity of fuses, fusible links, components and circuits
Diode test—use the diode function to test the diode pack on a typical alternator
DC amps—measure DC current to determine the presence of a parasitic load; measures current draw of branch circuits
Data-H (Data hold)—lock reading on the display in locations where it is difficult to read, or for future reference
DC volts—Use DC voltage to verify if the proper voltage level is arriving at a sensor of circuit
AC volts—measure AC voltage signals on digital MAF sensors, wheel speed sensors and vehicle speed sensors
AC amps—measure the current draw of AC-powered equipment in the shop
Tilt stand—is built-in into the instrument housing
Separate fuse/battery compartment—easily removed for battery/fuse replacement. Fuses are labeled with replacement number

Capacitance	No
RPM	EEDMRPMG (opt.)
Low Pass Filter (LPF)	No
Case or Zipper Pouch	EEDM504B4 (opt.)
Adjustable Trigger Level	No
Temperature	EEDM506Câ€ (opt.)
AC Volts	750
Basic DC Accuracy, %	0.50
Micro Amps	Yes
Country Of Origin	KOR
Dimensions, inches	7-3/4 x 3-3/4 x 1-1/2
Noise Reduction Circuit	No
mS Pulse Width	No
CAT Rating	CATII 750 V AC, CATII 1,000 V DC, CATIII 600 V AC/DC
Backlight	No
Auto Shut-off	No
Test Leads	EEDM504B3
Certificate of Calibration Model	—
DC Amps	10
UL® Listed	cULus 61010-1
Glitch Capture	No
Insulation Test	No
Analog Bar Graph	No
Resistance, ohms	20M Ohm
Data Hold	Yes
Auto Range	No
Duty/Dwell	No
True RMS (Root Mean Square)	No
AC Amps	10
Display Count	2,000
Fuses	EEDMFUSE-2, EEDMFUSE-4
Blown Fuse Identifier	Yes
Comp. Output (USB)	No
Min/Max	No
DC Volts	1,000
Easy Open Battery and Fuse Door	Yes
Color Screen	No
Frequency	No
